Rear Wheel Spacers Install
The following pictures are from the installation of Crow Automotive Products1 1/4 inch
Wheel Spacers onto my 1998 Mustang Cobra. I purchased and installed these to push the rear wheels out a bit. If you ever look at the 94+ Mustangs
with stock wheels, you notice that the rear wheels seem a little tucked under the rear fenders. These spacers take care of that. These spacers also
have the correct hubcentric hole in them to mount them correctly to the rear hub.Audemars Piguet Replica
1. The first step is to jack the rear of the car up and remove the rear wheels.
|

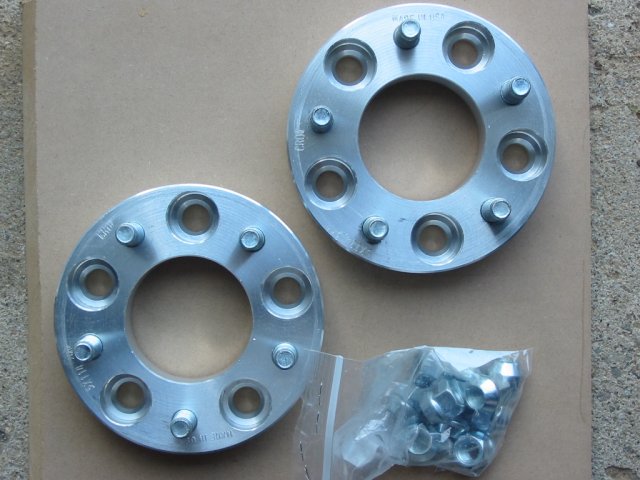

Spacers
|

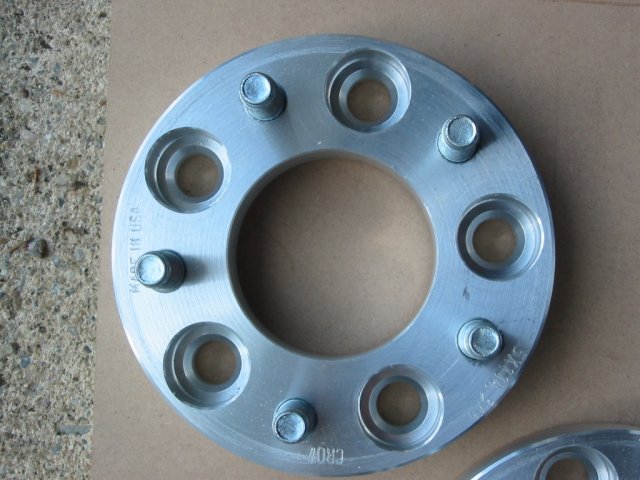

Spacer Close Up
|

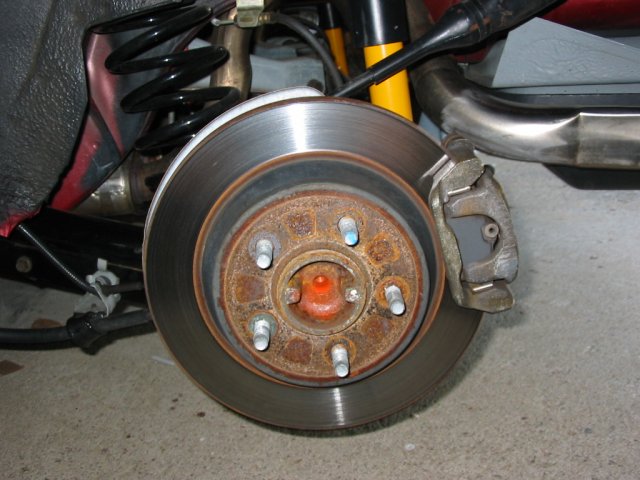

Left Rear Side
|
|
|
|
2. The next step is to mount the spacer on the rear axle using the supplied lug nuts. Torque these lug nuts to 95 ft/lbs.
I also put some anti-seize on the back of the spacers to keep them from rusting to the hub surface.
|

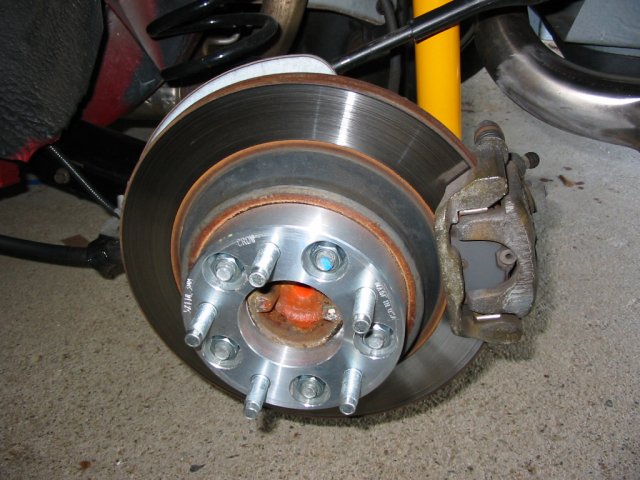

Installed
|

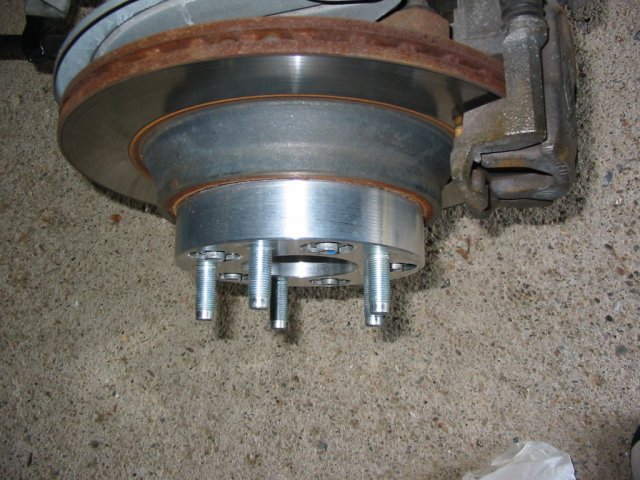

Installed Top View
|
|
|
|
|
3. Mount the wheel to the spacer using factory lug nuts. Repeat for the other side.
|
Left Side Installed
|

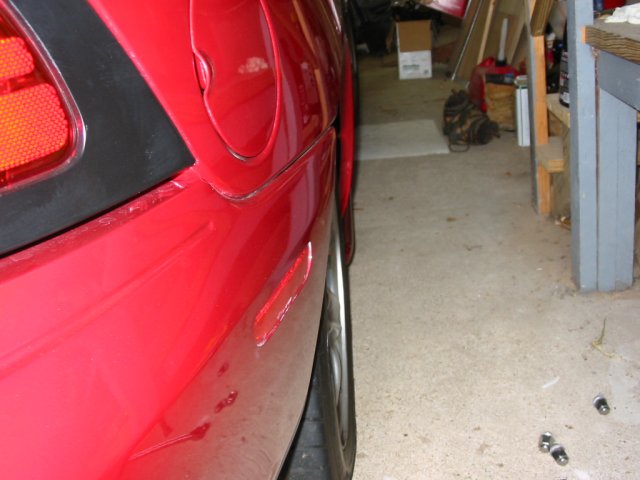

Right Side Before
|
|
|
|
|
10. Impressions. I really liked the mod. The rear wheels look right. It is a good compromise from buying new wheels if you like the look of
your factory wheels. I would recommend these spacers to anyone.
